Cushioning vs Spacing
A pad intended to protect a component may need a different density and recovery behavior than a pad intended to hold a controlled gap.
DRAWING-BASED CUSTOM PARTS
Custom Foam Pads
Purpose-cut foam pads for impact cushioning, spacing, grip and controlled contact in assemblies and packaging.
Provide the part footprint, allowable deflection, contact surface and assembly method for a focused foam review.
Made for Your Application
Foam pads are discrete pieces rather than continuous sealing frames. They are engineered around the needed contact area, load spread, rebound and mounting approach, making them useful for product protection, feet, anti-rattle points and internal spacers.
Material approach
Foam density and thickness can be tuned to absorb local impact while keeping part weight and material cost low.
Key features
- Density-matched cushioning
- clean die-cut edges
- optional adhesive
- colour coding
- multi-piece kit packing.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Part type | Custom die-cut foam pad |
|---|---|
| Available materials | EVA, PE, PU and silicone foam options |
| Thickness range | Material and compression dependent |
| Pad footprint | Drawing dependent |
| Profile tolerance | Drawing review required |
| Thickness tolerance | Material grade dependent |
| Adhesive options | PSA where suitable for placement |
| Delivery format | Individual pads, sheets or kiss-cut liner |
| Compression response | Grade and load dependent |
MATERIAL SELECTION
Foam Pads Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Construction | Review Focus | Best For |
|---|---|---|---|
| EVA Foam | Closed-cell options | Confirm resilience and surface wear | Cushioning and spacing |
| PE Foam | Closed-cell options | Confirm compression and moisture exposure | Lightweight protection and spacing |
| PU Foam | Open-cell options | Confirm damping and environmental exposure | Soft cushioning and vibration management |
| Silicone Foam | Open or closed-cell options | Confirm temperature and closure force | Temperature-sensitive applications |

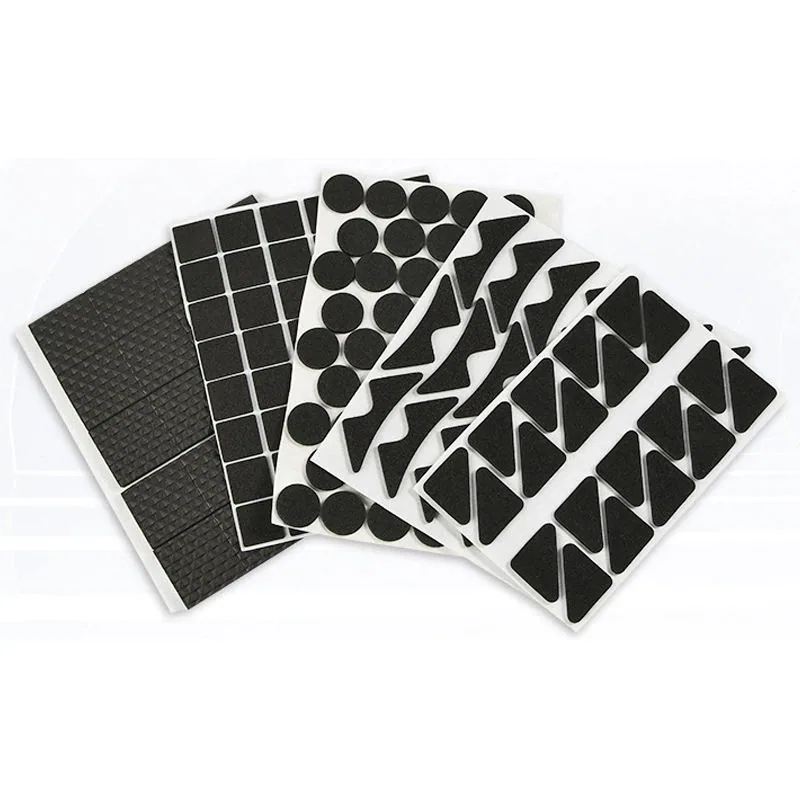

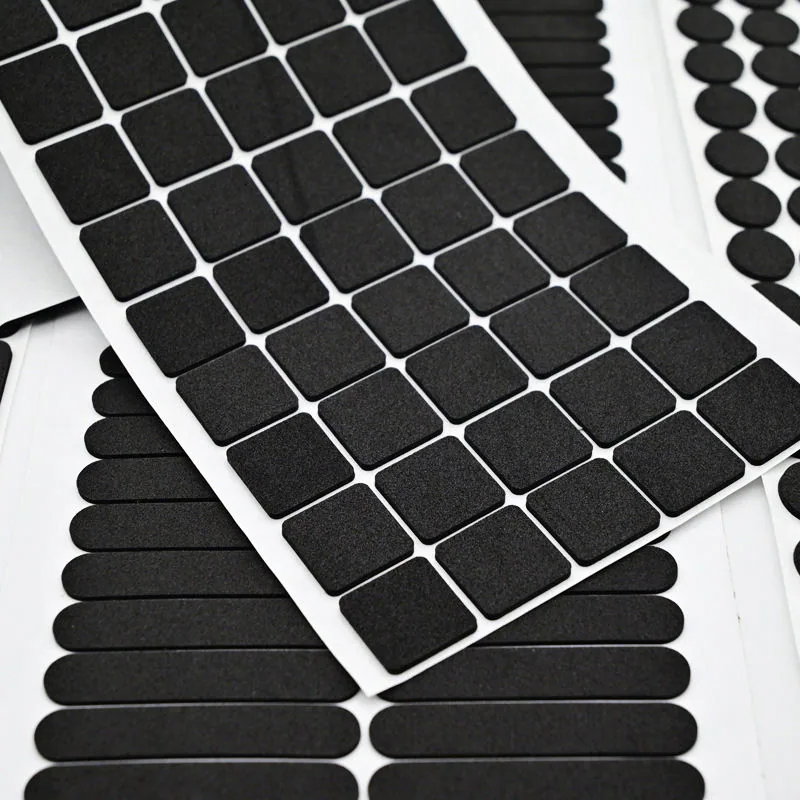

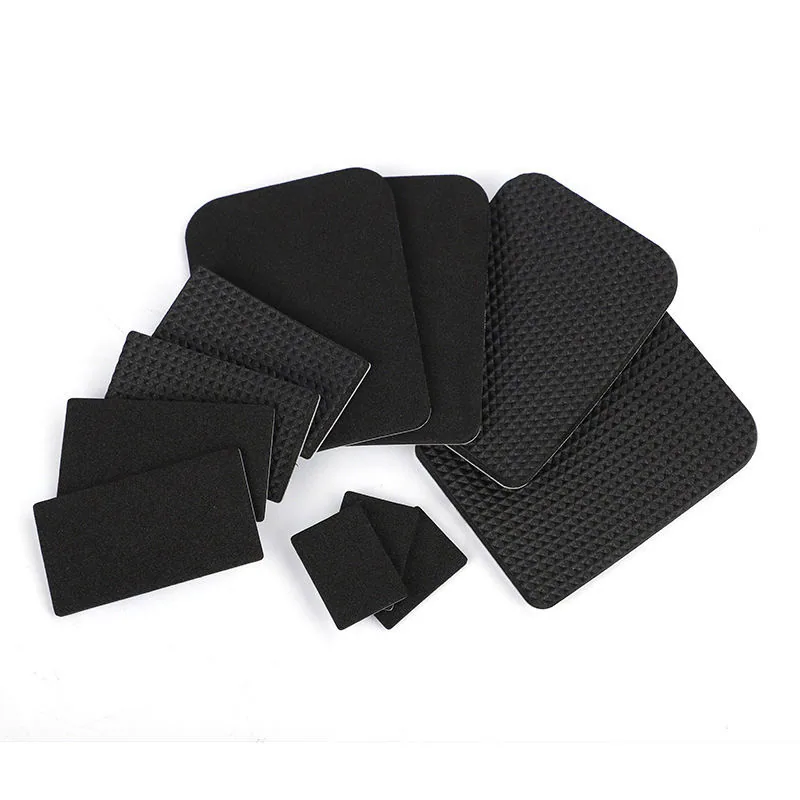

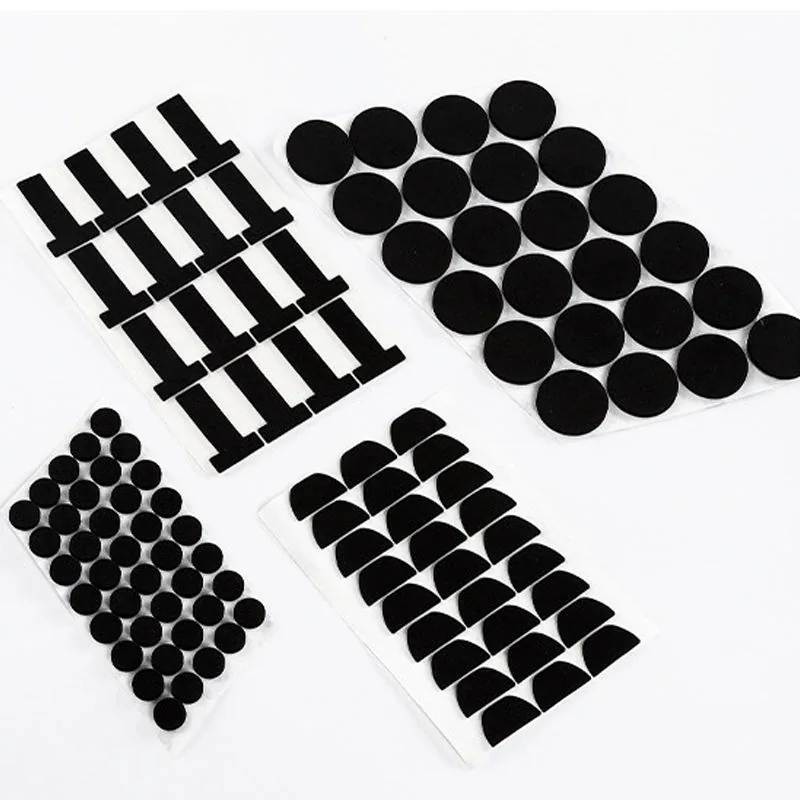

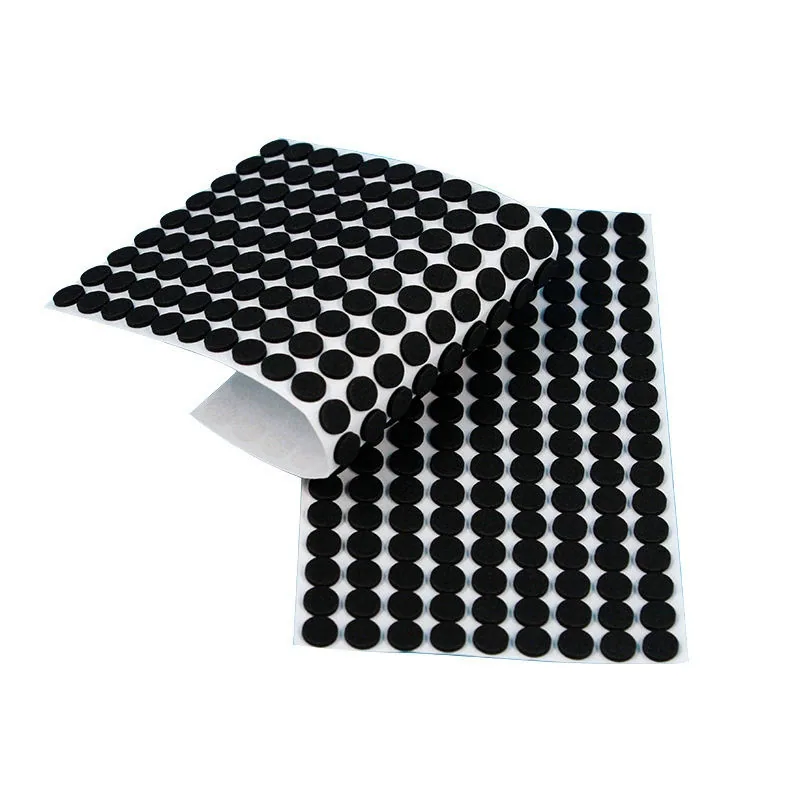

PRODUCT EXAMPLES
Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Pad geometry can include relief pockets, peel tabs and multi-layer stacks to control compression and placement.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Kiss Cutting
Liner-retained parts and pull-tab layouts for placement workflows.
Kiss Cutting →Adhesive Backing
PSA and liner constructions reviewed around the mating surface and assembly method.
Adhesive Backing →Industrial Laminating
Layered material constructions reviewed as a complete assembly.
Industrial Laminating →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Density and Deflection
Specify allowable deflection, contact area and expected load. Static hardness alone does not define in-service response.
Adhesive and Liner Format
For placement workflows, include the target surface, required liner configuration and whether individual or sheet delivery is preferred.
Surface and Wear
If the exposed face slides or contacts a cosmetic surface, identify the abrasion, marking and friction requirements.
Applications / Where It Fits
Foam pads can be configured for cushioning, spacing, contact protection or placement retention; the intended function defines the construction.
When This Part May Not Be the Best Choice
High-temperature continuous service beyond the foam grade, concentrated point loads, or long-term solvent immersion.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Cutting | Die cutting / CNC knife cutting / kiss cutting after review |
| Adhesive | PSA where suitable for placement |
| Delivery format | Individual pads / sheets / kiss-cut liner |
| Prototype | Project review available |
| Production | Prototype to production-volume review |
| Drawing formats | PDF / DXF / DWG / STEP |
| Inspection | Critical requirements confirmed during drawing review |
| Secondary operations | Adhesive lamination, pull tabs and layered constructions where suitable |
Drawing Requirements
Recommended drawing formats
Please include
- Overall dimensions
- Thickness
- Critical tolerances
- Quantity
- Pad footprint
- Expected load / deflection
- Contact surface
- Placement requirement
No drawing available? Send the pad footprint, load, available deflection and assembly method for feasibility review.
Frequently Asked Questions
Which foam is suitable for a custom pad?
Selection depends on whether the pad is intended for cushioning, spacing, damping, surface protection or temperature-related conditions.
How should I specify foam pad compression?
Include the available gap, expected load, pad area and allowable deflection rather than relying on a generic hardness value.
Can foam pads include adhesive backing?
Yes. Share the target surface, placement method and liner requirement for adhesive review.
Can you supply foam pads on a release liner?
Kiss-cut liner formats can be reviewed for suitable foam and adhesive constructions.
Can foam pads be layered?
Layered foam, film and adhesive constructions can be reviewed where the drawing and application support them.
Can you make pads for cosmetic surfaces?
State the surface finish, movement, marking concern and expected load so the contact material can be reviewed.
Can you produce prototype foam pads?
Prototype options are reviewed according to material availability, geometry, quantity and required delivery format.
Can you make foam pads to my drawing?
Yes. CAD files, PDFs, dimensioned sketches and clear reference images can be reviewed for a custom quotation.
What information is needed for a quote?
Include the drawing, material preference if known, critical dimensions, quantity and the application environment.
How is a production route selected?
The manufacturing route is reviewed against the material, profile, critical requirements, quantity and delivery format rather than assumed from the part name.
