Contact Area and Load
Use the required load, allowable deflection and available pad area to guide material and geometry review.
DRAWING-BASED CUSTOM PARTS

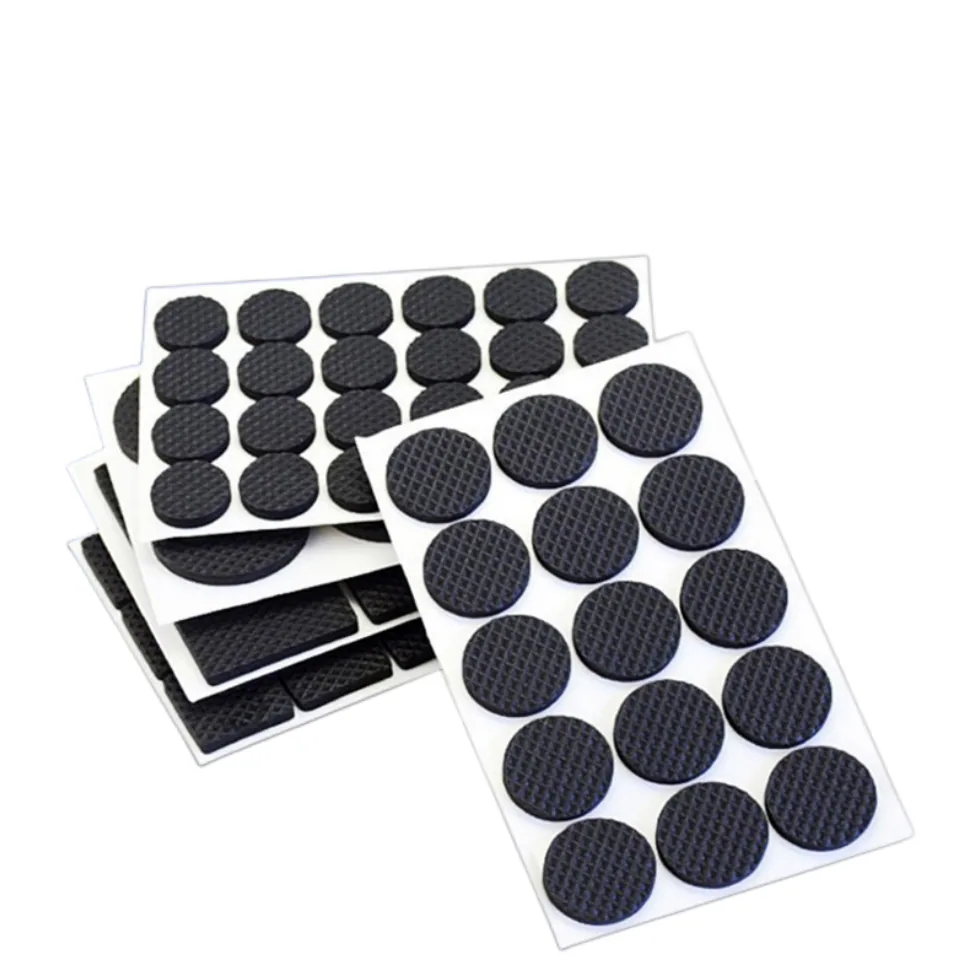

Custom Rubber Pads
Durable rubber contact pads that add grip, protect surfaces and reduce chatter under equipment and assemblies.
Share the load, contact surface, environment and mounting method so the material construction can be reviewed.
Made for Your Application
Rubber pads are discrete elastomer components that receive repeated contact, sliding or compressive loads. Their compound and surface can be selected for grip, oil resistance, weatherability or heat performance, with adhesive used when a permanent location is needed.
Material approach
Compared with foam, solid rubber better withstands repeated loading and abrasion while maintaining useful friction and recovery.
Key features
- High-grip contact
- repeated-load durability
- custom Shore hardness
- textured surfaces
- adhesive or screw-mount layouts.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Part type | Custom die-cut rubber pad |
|---|---|
| Available materials | EPDM, neoprene and nitrile options |
| Thickness range | Material and load dependent |
| Pad footprint | Drawing dependent |
| Profile tolerance | Drawing review required |
| Thickness tolerance | Material grade dependent |
| Adhesive options | PSA where suitable for placement |
| Delivery format | Individual pads, sheets or liner-retained parts |
| Contact condition | Load and surface dependent |
MATERIAL SELECTION
Rubber Pads Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Key Property | Review Focus | Best For |
|---|---|---|---|
| EPDM Rubber | Weather and water resistance | Confirm outdoor exposure and load | Outdoor equipment contact pads |
| Neoprene Rubber | Balanced industrial performance | Confirm wear and environment | General cushioning and protection |
| NBR / Nitrile Rubber | Oil resistance | Confirm fluid contact | Oil-exposed equipment interfaces |
PRODUCT EXAMPLES

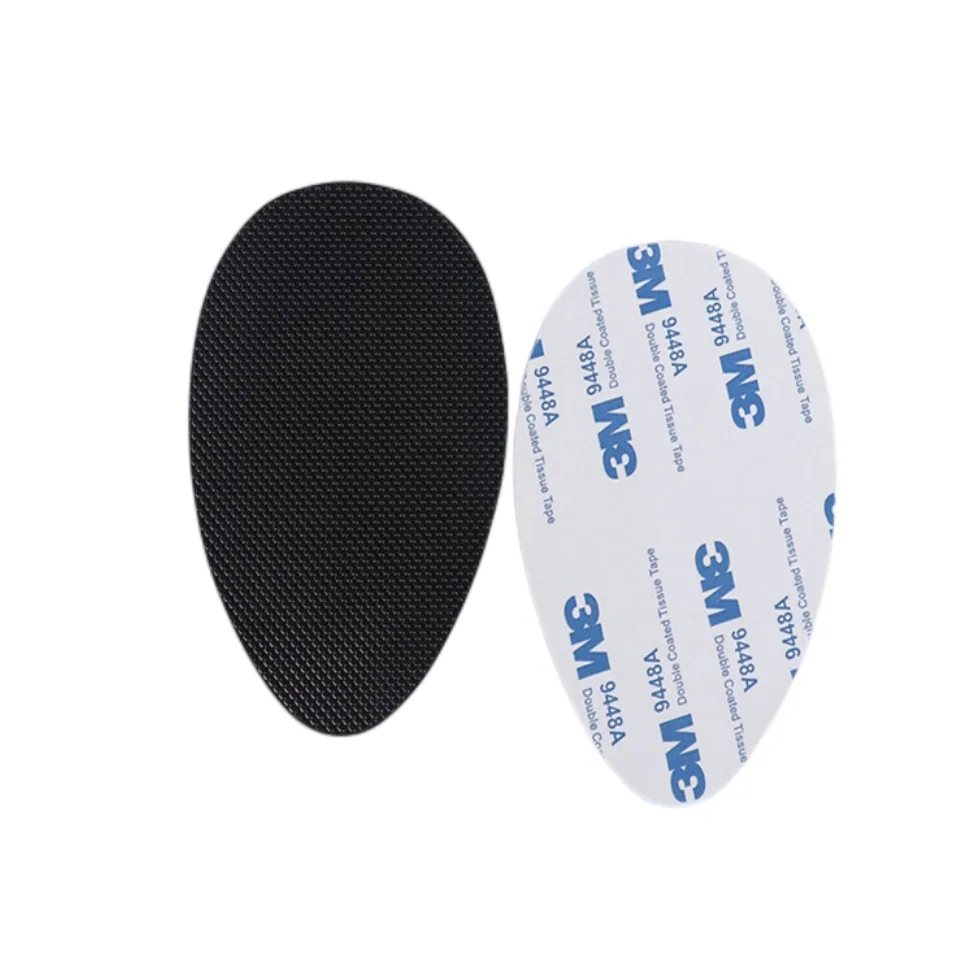

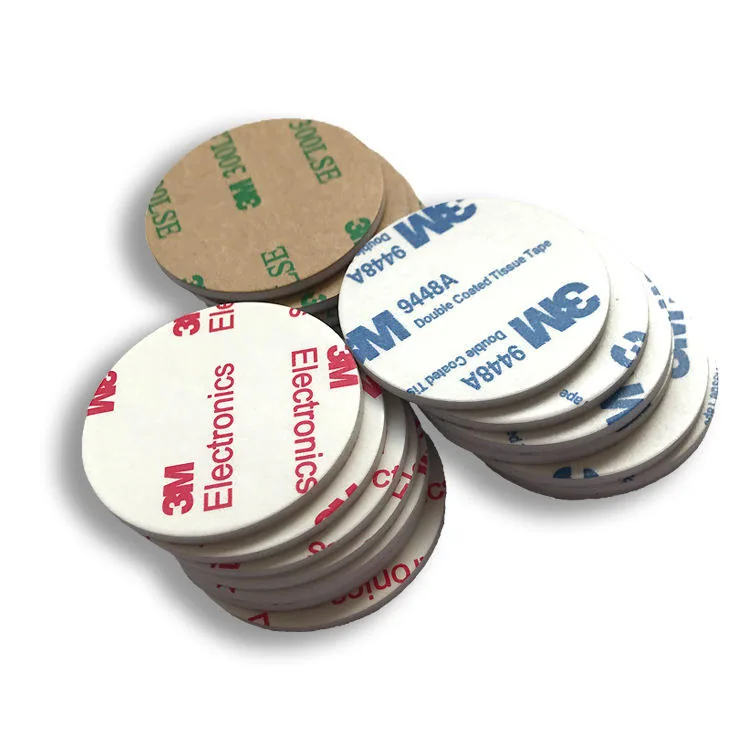

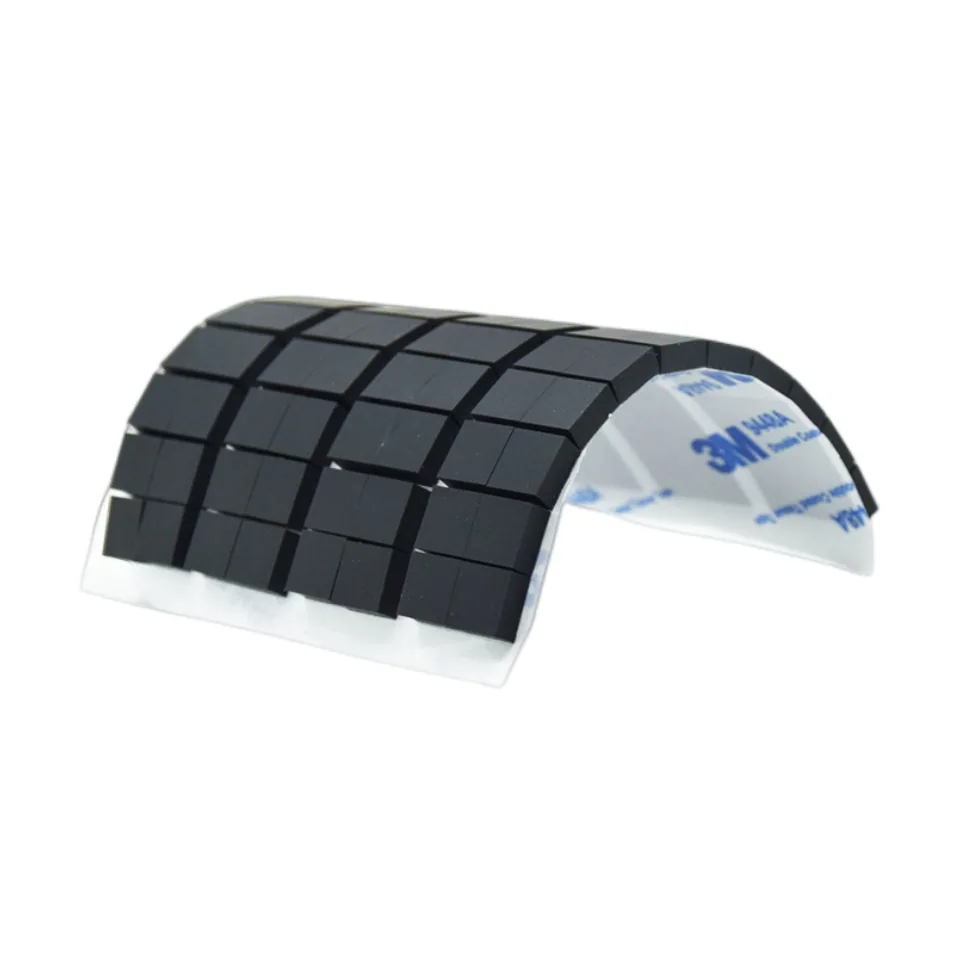

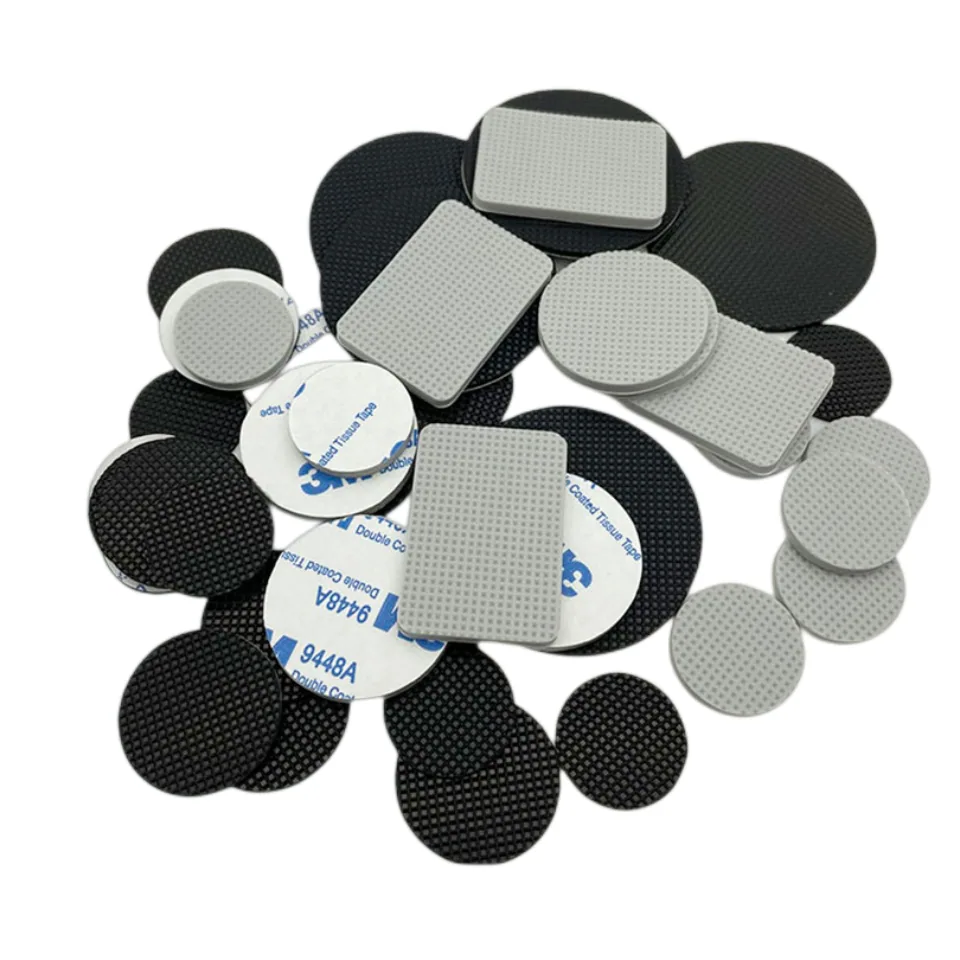

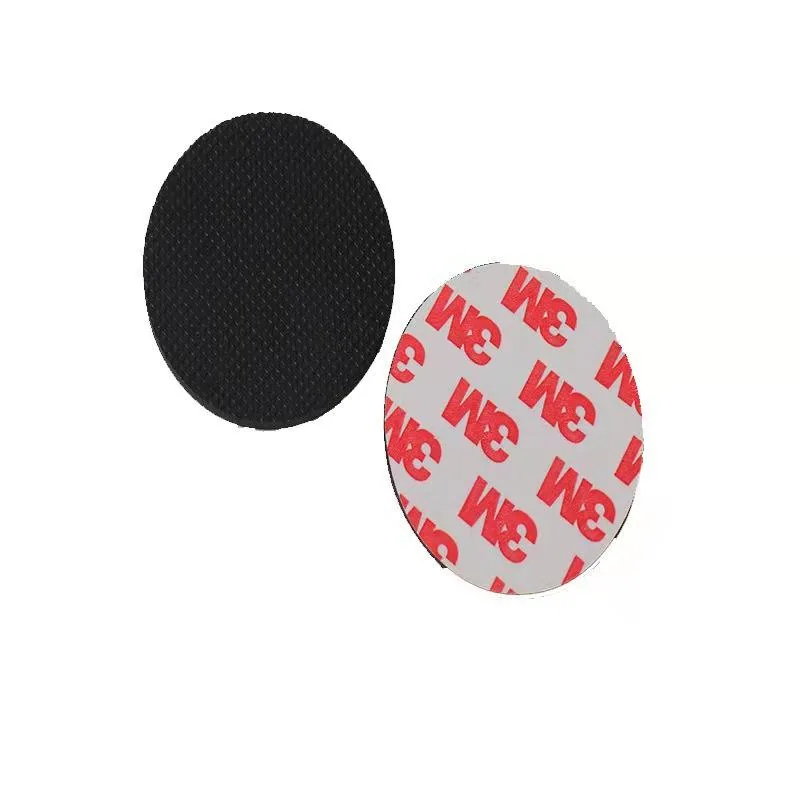

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Contact area, edge radius and texture are adjusted to prevent creep, edge curl and local overload.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Adhesive Backing
PSA and liner constructions reviewed around the mating surface and assembly method.
Adhesive Backing →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Surface Protection
The mating surface, required friction and risk of marking should be stated when selecting the exposed pad face.
Mounting Method
Adhesive can retain a pad during assembly, while the contact load and movement determine its long-term suitability.
Repeated Compression
Repeated impact or cycling should be evaluated against the selected compound and expected service conditions.
Applications / Where It Fits
Pad selection should begin with the actual contact load, movement, mating surface and the required amount of deflection.
When This Part May Not Be the Best Choice
Large-impact isolation without adequate pad area, aggressive chemical media without compound validation, or food-contact claims without documented compliance.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Cutting | Die cutting / CNC knife cutting after drawing review |
| Adhesive | PSA where suitable for placement |
| Delivery format | Individual pads / sheets / liner-retained parts |
| Prototype | Project review available |
| Production | Prototype to production-volume review |
| Drawing formats | PDF / DXF / DWG / STEP |
| Inspection | Critical requirements confirmed during drawing review |
| Secondary operations | Adhesive lamination and nested-sheet layouts where suitable |
Drawing Requirements
Recommended drawing formats
Please include
- Overall dimensions
- Thickness
- Critical tolerances
- Quantity
- Pad footprint
- Expected load
- Mating surface
- Movement / wear condition
No drawing available? Send the pad footprint, load, mating surface and required mounting method for an initial review.
Frequently Asked Questions
How do I choose rubber pad thickness?
Thickness is reviewed with the required deflection, load, available space and selected material grade.
Can rubber pads protect painted or coated surfaces?
Surface-protection needs should be identified with the mating finish, movement and marking risk for review.
Are adhesive-backed rubber pads available?
PSA can be reviewed for suitable surfaces when the mounting environment is provided.
Can a rubber pad include holes or a custom outline?
Yes. Include holes, cutouts, radii and any critical features on the drawing.
Can rubber pads be used in outdoor equipment?
Outdoor suitability depends on the selected compound and exposure conditions, which should be included in the RFQ.
What information is useful for vibration-control pads?
Share the load, contact area, movement, expected deflection and service environment.
Can you review prototypes?
Prototype feasibility is reviewed with the material, profile, quantity and delivery format.
Can you make rubber pads to my drawing?
Yes. CAD files, PDFs, dimensioned sketches and clear reference images can be reviewed for a custom quotation.
What information is needed for a quote?
Include the drawing, material preference if known, critical dimensions, quantity and the application environment.
How is a production route selected?
The manufacturing route is reviewed against the material, profile, critical requirements, quantity and delivery format rather than assumed from the part name.
