Inner Diameter and Concentricity
Identify the mating fastener, clearance requirement and any critical concentricity or edge condition on the drawing.
DRAWING-BASED CUSTOM PARTS
Custom Rubber Washers
Custom rubber washers sized for fasteners, fittings and panel holes to seal, cushion and electrically isolate.
Send the inner diameter, outer diameter, thickness, clamp condition and application environment for a drawing review.
Made for Your Application
Rubber washers are annular die-cut parts that distribute fastener contact while accommodating surface variation. Compound choice lets the washer serve as a water seal, vibration buffer, anti-scratch layer or electrical isolation interface in one compact component.
Material approach
A rubber washer adds elastic recovery around a fastener and can seal minor irregularities better than a metal washer alone.
Key features
- Custom ID and OD
- compound-specific resistance
- bolt-hole sealing
- colour coding
- loose or kit packaging.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Part type | Custom die-cut rubber washer |
|---|---|
| Available materials | EPDM, nitrile and FKM options |
| Thickness range | Material and clamp-load dependent |
| Inner / outer diameter | Drawing dependent |
| Profile tolerance | Drawing review required |
| Thickness tolerance | Material grade dependent |
| Adhesive options | Not typically required |
| Delivery format | Individual washers or nested sheets |
| Media / environment | Selected compound dependent |
MATERIAL SELECTION
Rubber Washers Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Key Property | Review Focus | Best For |
|---|---|---|---|
| EPDM Rubber | Weather and water resistance | Confirm outdoor and water exposure | General outdoor sealing washers |
| NBR / Nitrile Rubber | Oil resistance | Confirm fluid, temperature and clamp load | Oil-contact washer applications |
| FKM Rubber | Specialty material options | Confirm compound and media compatibility | Demanding process conditions |
PRODUCT EXAMPLES

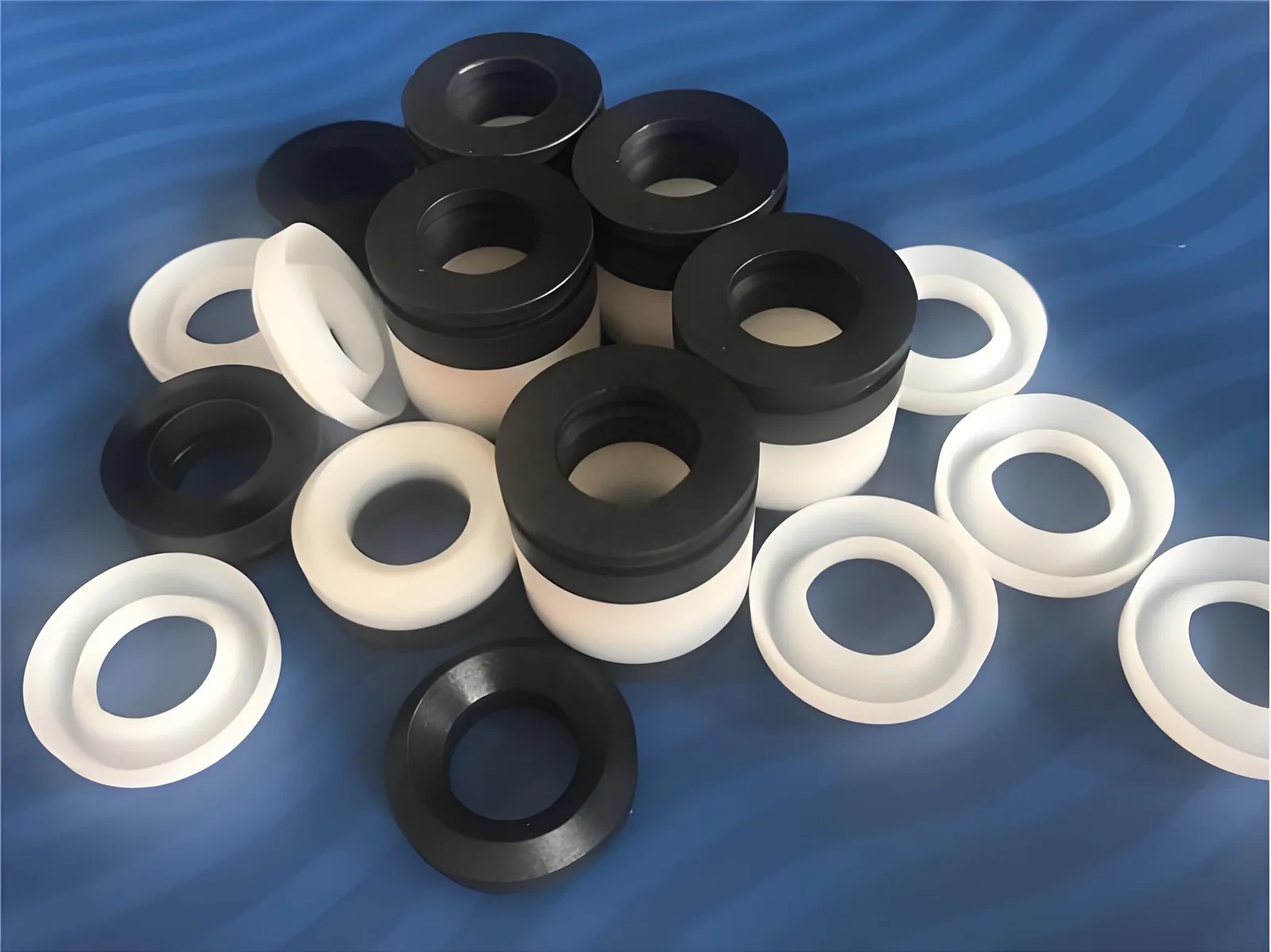

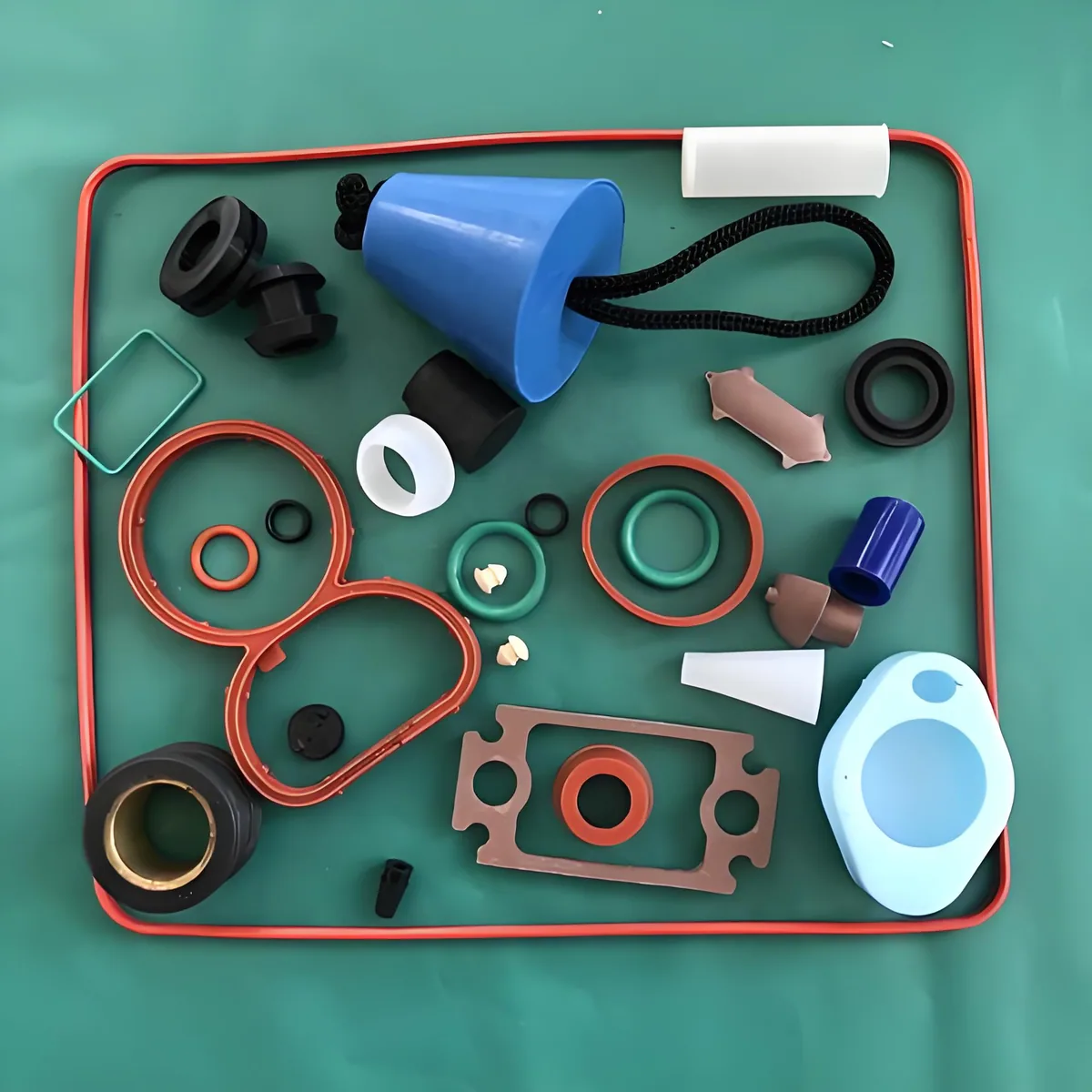

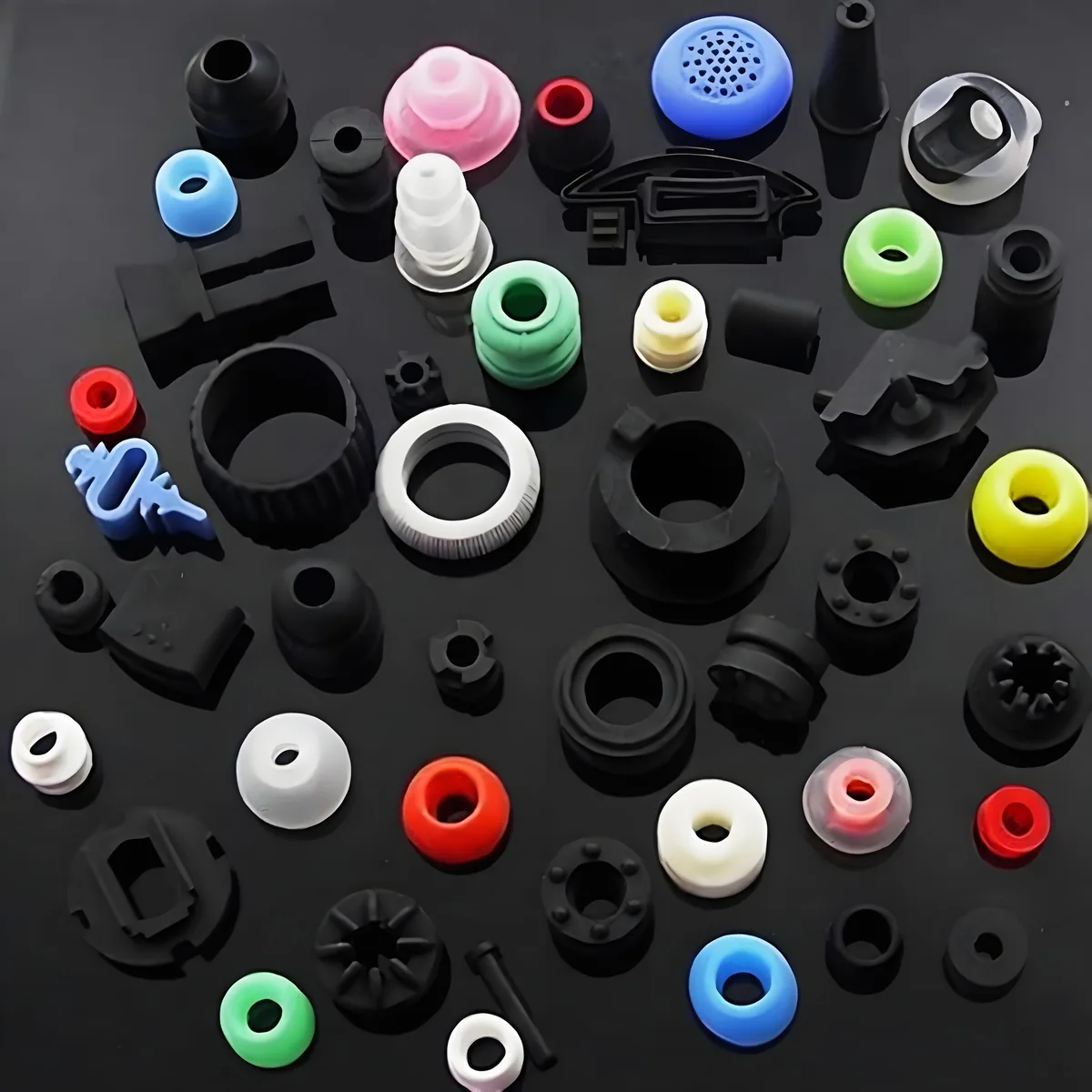

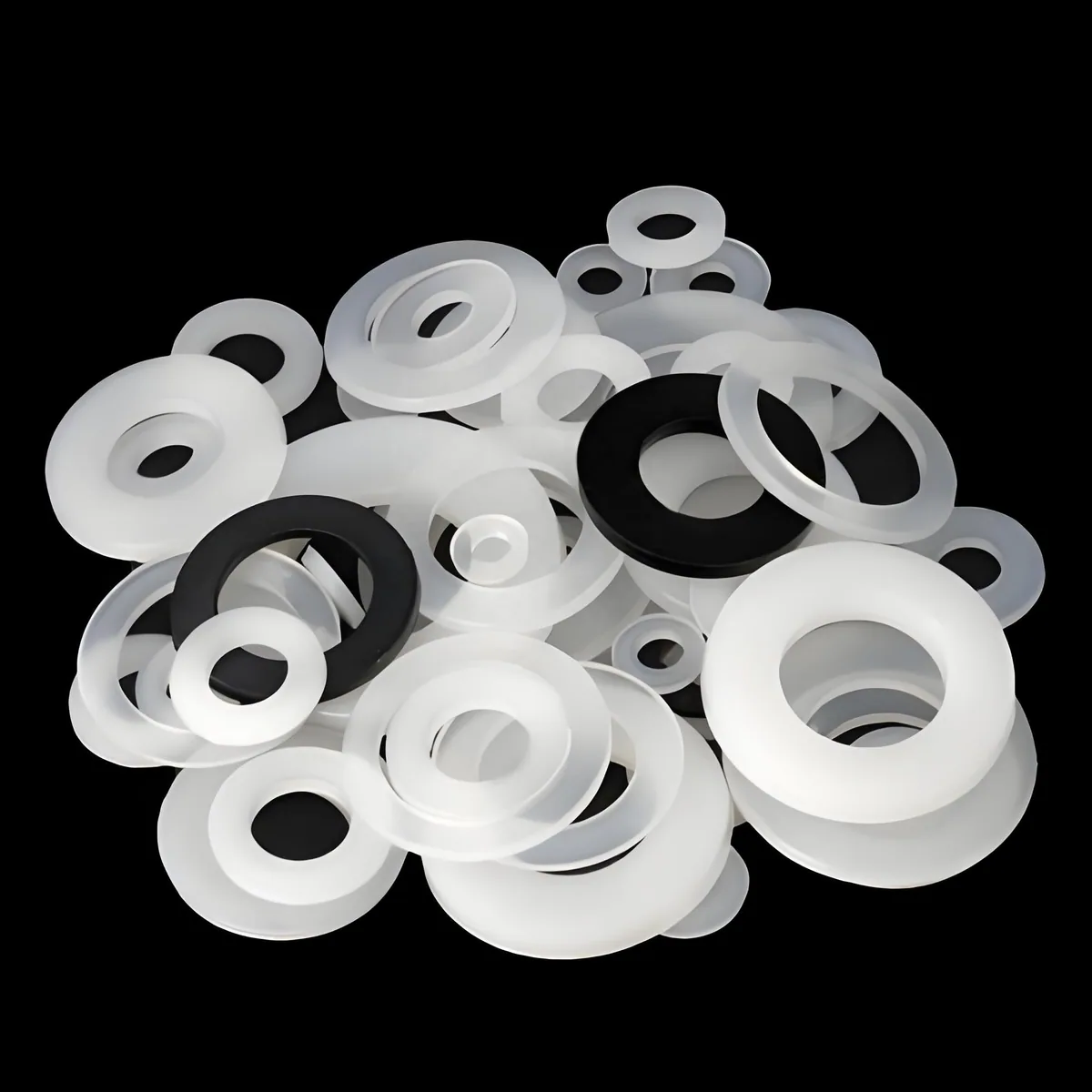

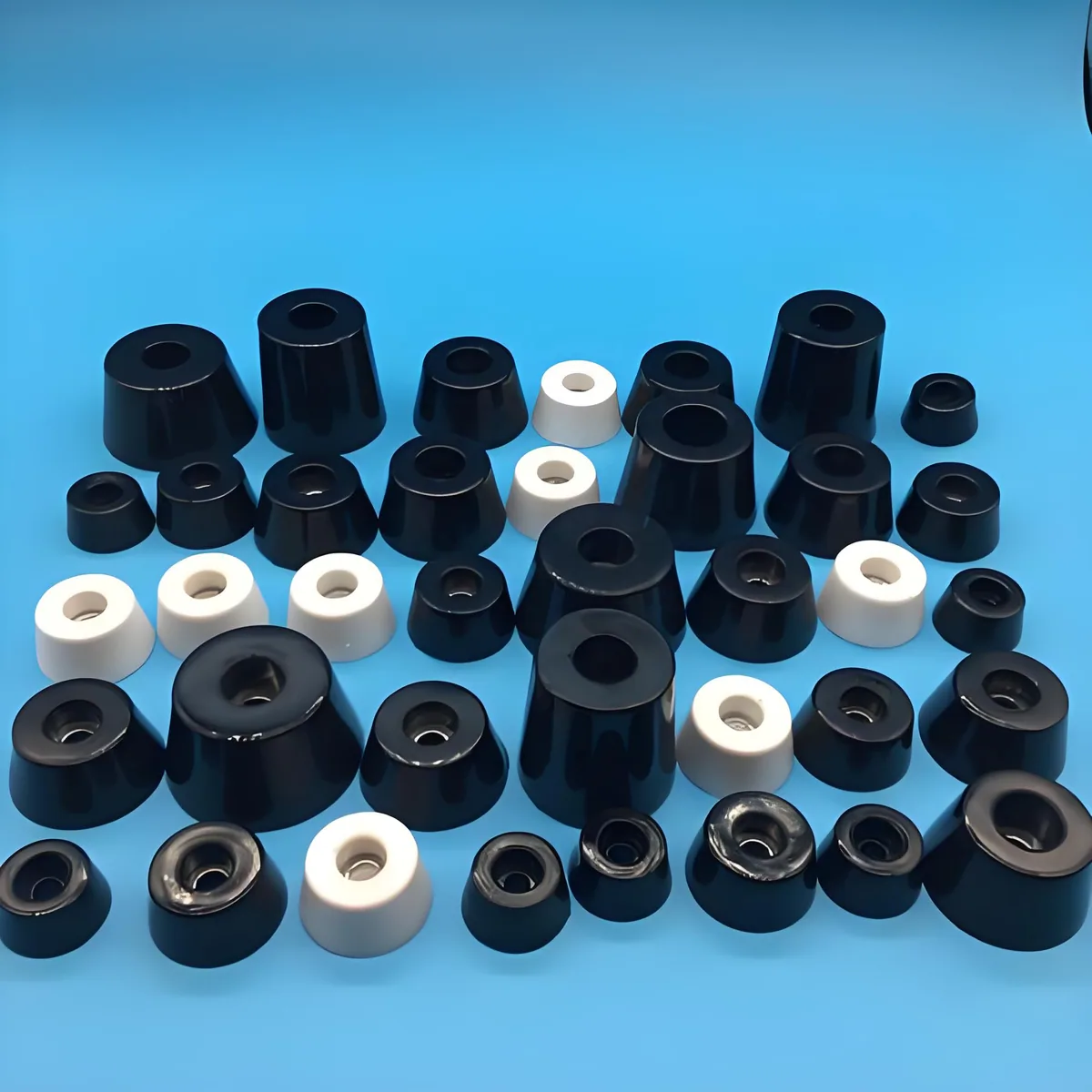

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Hole size is set to assembly clearance and desired squeeze; concentricity requirements should be stated for tight fits.
DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Clamp Load
A washer’s behavior depends on material grade, thickness and the expected clamp load. Avoid assuming a fixed compression response.
Media and Environment
State the actual fluid, temperature and outdoor exposure when material compatibility is important.
Washer Delivery
Specify individual parts, nested sheets or another delivery format based on the assembly process.
Applications / Where It Fits
Washer selection depends on the actual fastener, clamp load, media, temperature and the required inner- and outer-diameter control.
When This Part May Not Be the Best Choice
Structural load bearing, high-pressure hydraulic sealing without a purpose-designed seal, or temperatures beyond the selected elastomer.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Cutting | Die cutting / CNC knife cutting after drawing review |
| Adhesive | Not typically required |
| Delivery format | Individual washers / nested sheets |
| Prototype | Project review available |
| Production | Prototype to production-volume review |
| Drawing formats | PDF / DXF / DWG / STEP |
| Inspection | Critical requirements confirmed during drawing review |
| Secondary operations | Nested layouts and kit packing where suitable |
Drawing Requirements
Recommended drawing formats
Please include
- Overall dimensions
- Thickness
- Critical tolerances
- Quantity
- Inner diameter
- Outer diameter
- Fastener / clamp condition
- Fluid or environmental exposure
No drawing available? Send the fastener size, inner and outer diameter, thickness, clamp condition and application environment.
Frequently Asked Questions
How do I specify a custom rubber washer?
Provide the inner and outer diameter, thickness, material preference, clamp condition and intended environment.
Can washers include tabs or non-round outside profiles?
Yes. Custom outer profiles, tabs and internal features can be reviewed from a drawing.
Which material is suitable for an oil-contact washer?
Material selection requires the actual fluid, temperature, pressure and exposure duration.
Can you control a critical inner diameter?
Identify critical dimensions and tolerances on the drawing for feasibility review.
Can washers be supplied in nested sheets?
Nested-sheet and individual-part formats can be reviewed around the assembly process.
Are prototypes available?
Prototype and production routes are reviewed against material, geometry, quantity and delivery needs.
Can you advise on clamp load?
Share the fastener, joint stack-up and required function so the material construction can be reviewed.
Can you make rubber washers to my drawing?
Yes. CAD files, PDFs, dimensioned sketches and clear reference images can be reviewed for a custom quotation.
What information is needed for a quote?
Include the drawing, material preference if known, critical dimensions, quantity and the application environment.
How is a production route selected?
The manufacturing route is reviewed against the material, profile, critical requirements, quantity and delivery format rather than assumed from the part name.
CONTINUE YOUR RESEARCH
Related Parts, Materials & Capabilities
DRAWING-BASED MANUFACTURING
Get a Rubber Washers Quote
Upload a drawing or share dimensions, material preference and quantity. We will review the application and recommend a suitable manufacturing approach.
- Drawing or dimensionsPDF, CAD file, sketch or a clear image
- Material and applicationShare what you know; operating conditions help
- Private drawing uploadSubmit files directly with this product inquiry
Tell us about your part
Inquiry: Rubber Washers
Ready for your drawing or specification file.
